One video DSLR support system for all your shooting styles

The award-winning Redrock Micro DSLR 2.0 hybrid support rigs recognize that video DSLRs change the game when it comes to shooting styles and situations. No longer encumbered by large heavy cameras, DSLR cinema can shoot anytime, any place, discreetly and without drawing attention. Switching between motion and still photography is a snap, and your support rig needs to quickly adapt to the various shooting styles enabled by these small cameras. The Redrock DSLR 2.0 hybrid support rigs meet the need by providing cinema-quality

Ultra lightweight and ultra portable for discreet shooting

The Redrock DSLR 2.0 hybrid rigs are a new level of portability and lightweight for still and cinema-style shooting rigs. At the heart of this system is the unique patent-pending DSLR baseplate: a lightweight connector to connect the DSLR to 15mm rails as the backbone of any setup. The DSLR baseplate has set screws to eliminate camera rotation for using accessories such as the microFollowFocus. As a result, full size accessories are avoided, minimizing weight without sacrificing features.

Carbon Fiber Rods New as of September 2009 - all DSLR bundles now ship with carbon fiber rods. Redrock's unique process results in precision, incredibly strong rods that are 66% lighter than comparable stainless steel rods.

Complete Rigs, or Roll Your Own

Whatever your shooting style, the DSLR 2.0 rigs can meet your need. We've created some of the most popular configurations as one-stop packaged solutions. If you want something a little different you can purchase individual components and build your own unique rig.

Future-proof accessories

All DSLR 2.0 rigs are based on cinema standards wherever possible, including the important specs such as 15mm rails, film pitch gearing, and standard filter sizes. Virtually all components can also be used with video cameras, Red cameras (such as Scarlet) and other DSLRs. This keeps your Redrock gear working for you now and into the future.

Revolutionary Pricing

In keeping with Redrock's philosophy of affordable ownership, DSLR 2.0 hybrid support rigs can be purchased for hundreds, not thousands, of dollars. YOu can also add components as your needs grow to adapt your equipment to your evolving shooting style and equipment.

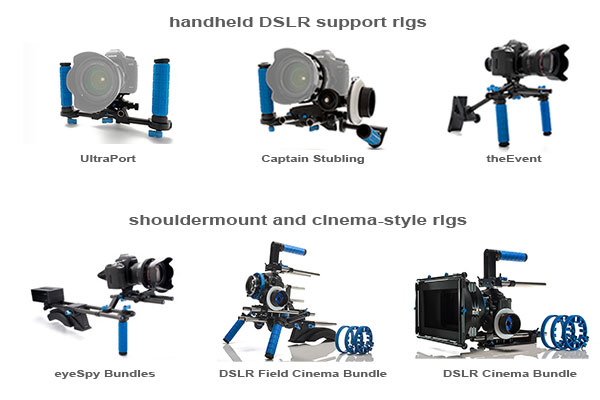

DSLR 2.0 Rigs

UltraPort

click to enlarge

"The UltraPort is like a deck of cards - lots of fun on its own (solitaire!), and with additions, it can turn into something customized and useful to you (poker night!  supervillain calling card!).  The two-grip configuration minimizes rotation while you shoot, and it's easy to remove the camera from the rods with the dSLR baseplate's quick release system.  Shoot with just the camera.  Shoot handheld with grips.  Build a custom beast to rival that restored 1969 Mustang your dad still won't let you drive."

Captain Stubling

click to enlarge

'We don't really have the authority to hand out military ranks, but we're making an exception. Like Captains of other things (ships, space ships, industry), this rig goes where others wouldn't dare, and leads by example. The Stubling gets its name from its designer, DV Rebel and VFX guru Stu Maschwitz (www.prolost.com) T and the functionality of the design reflects Stu's philosphy on shooting - put the camera everywhere, stay light, and do it all yourself." The Captain Stubling builds off the UltraPort by incorporating the microFollowFocus for precise focus control, and moving one of the handgrips back on a 4" grip rod so the rig can be steadied in both hands while the thumb and forefinger of the left hand control focus.



theEvent

click to enlarge

Designed for extra stability while maintaining the freedom of handheld shooting, theEvent is designed with wedding/event and photojournalists in mind. theEvent sports two rugged handgrips and the microFinder loupe accessory, and adds our new microBrace body pad for and additional point of contact. Lightweight 6" carbon fiber rods keep the rig light and compact, and still allow enough room to add a microFollowFocus if desired.

eyeSpy Shouldermount Rigs

eyeSpy Standard

eyeSpy Balance

eyeSpy Deluxe Bundle

Sometimes the shoot requires a little more direct connection with the eyeball and camera. For a more traditional shouldermount shooting style we offer the EyeSpy rigs. EyeSpy starts with the shoulderpad, 18" 15mm carbon fiber rods, and single rubberized handgrip from the popular microShoulderMount. We've added an additional rod extension to center the camera for viewfinder use, and topped it off with the DSLR baseplate, and microFinder loupe accessory. You can also select versions that include the microFollowFocus v2 and the microBalance counterbalance weights for added stability and ease of use

The EyeSpy rig comes in three configurations

• eyeSpy Standard is the standard configuration and is an cost-effective base package including DSLR baseplate, shoulderpad, handgrip, rods, and offset

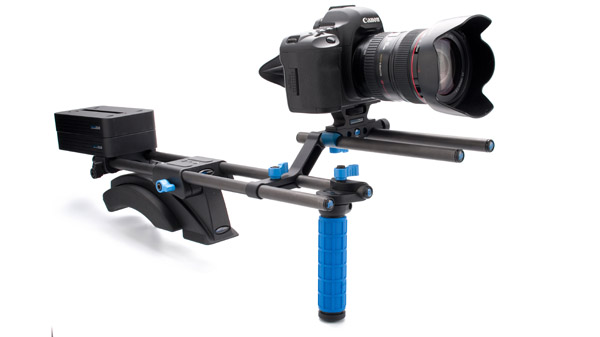

• eyeSpy Balance has everything in eyeSpy Standard, and adds the microBalance counterbalance weights for a rig that is easier on the arms for extended shooting.

• eyeSpy Deluxe Bundle has everything in eyeSpy Balance, and adds the microFollowFocus v2 for convenient, precise control over focusing your SLR lenses.

DSLR Field Cinema Deluxe and Standard Bundles v2

DSLR Field Cinema Standard Bundle v2

DSLR Field Cinema Standard Bundle v2

DSLR Field Cinema Deluxe Bundle v2

The DSLR Field Cinema Bundles v2 are a robust shoulder-mounted rigs designed for maximum stability and ruggedness. These bundle has been revised to include the most popular configuration of our field cinema bundle, and are used on professional shows such as Fox's House MD. The Deluxe bundle includes the microBalance Plus adjustable counterbalance weights, microHandle mounted to the main rails, and microFollowFocus v2. The STandard bundle is an affordable way to get started with the Field Cinema Bundle, removing the microHandle and microFollowFocus. The Field Cinema Bundles are designed for use with an external video monitor. If you prefer a shouldermount rig with eyepiece/viewfinder, consider the eyeSpy line of cinema rigs.

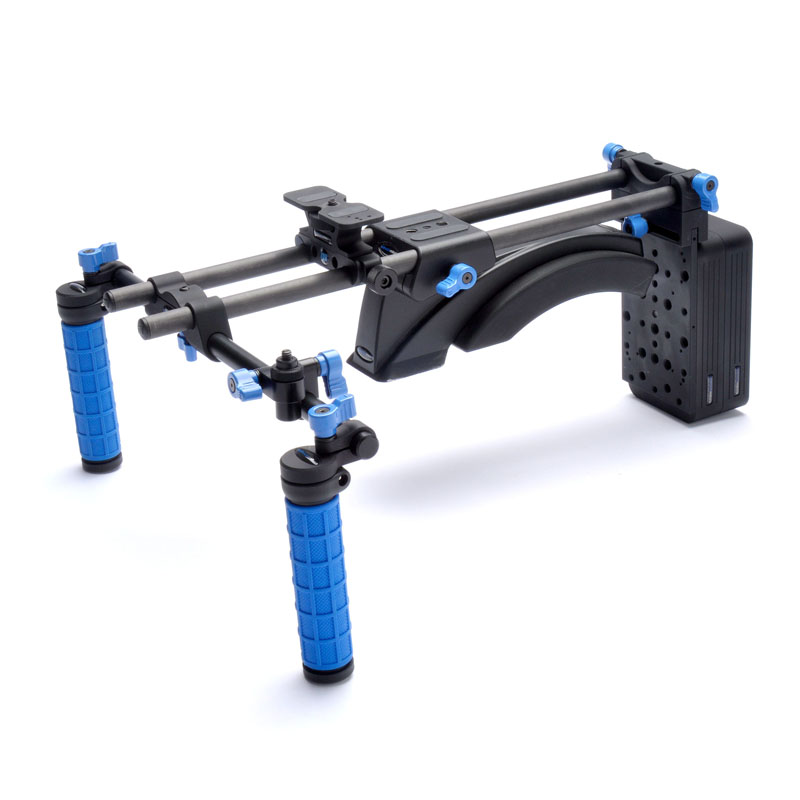

Redrock DSLR Field Cinema Standard Bundle V2

• 2x 18" 15mm carbon fiber rods
• 2x rubberized microHandGrips
• handlebar with 4" and 8" handlebar rods
• microMount with stub for mounting a monitor
• DSLR baseplate with unique anti-rotation pin
• microShoulderPad including integrated dovetail for connecting directly to a tripod

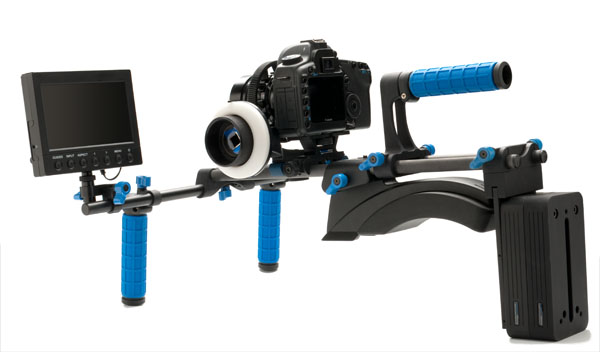

Redrock DSLR Field Cinema Deluxe Bundle V2

• 2x 18" 15mm carbon fiber rods
• 2x rubberized microHandGrips
• handlebar with 4" and 8" handlebar rods
• microMount with stub for mounting a monitor
• DSLR baseplate with unique anti-rotation pin
• microShoulderPad including integrated dovetail for connecting directly to a tripod
• microFollowFocus v2 (please note this bundle no longer includes lens gears)
• microHandle top handle (connects to rails for added strength: does not use hot shoe)

DSLR Cinema Bundle

click to enlarge

Front View

Rear View

Showing Cage

The DSLR Cinema Bundle is the premier solution for true cinema-style features, weight, and stability. This bundle provides a full size microMatteBox and microFollowFocus, all designed to current cinema specifications. The microSupport cage provides protection and side rods for mounting, and the top microHandle delivers a convenient place to hold the rig, and use for low mode shooting (handle is attached to the cage for strength. It is not attached to the camera's hot shoe). These same accessories can be used with any video camera and even the Red Digital Cinema cameras with minor add-ons. The DSLR Cinema Bundle is perfect for anyone shooting primarily with tripod, and wants to emulate the film style results found in big screen motion pictures.

Redrock DSLR Cinema Bundle

• machined aluminum baseplate, 15mm rods with 60mm spacing configuration
• 2x 12" 15mm carbon fiber rods
• cheeseplate & rod clamp for quick mounting to tripod
• DSLR baseplate with unique anti-rotation pin
• microMatteBox Deluxe Bundle
• microFollowFocus v2 (please note this bundle no longer includes lens gears)
• microHandle top handle (connects to the cage's side rails for added strength: does not use hot shoe)
• weight 9lb 1 0z (with one lens gear attached)

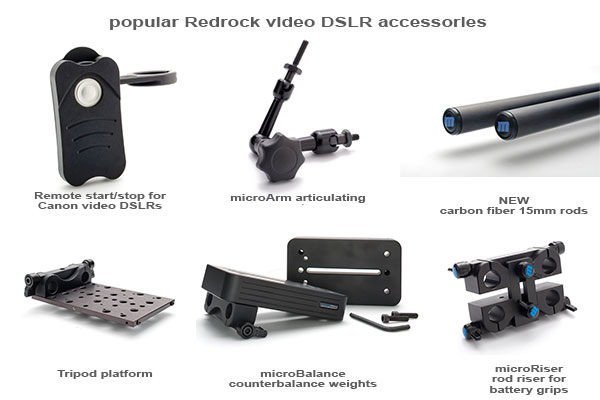

DSLR 2.0 individual Components and Accessories

Not quite finding the configuration you want? Build your own by purchasing individual components:

Accessory	Use	View in our online catalog
DSLR Baseplate	The foundation of any DSLR rig, the DSLR baseplate provides the connection from the camara to the rods, and sports the quick release clamp
microFinder loupe accessory	the microFInder loupe accessory allows you to firmly attach any compatible 3" loupe (such as the Hoodman Hoodloupe 3.0) onto the back of your DSLR's LCD for use as an optical viewfinder.
handlebar clamp	Attach handlebars (and eventually hand grips or other accessories) to your rig with the handlebar clamp. attaches via clamp for 2 15mm rods (60mm spacing). Handlebars are chosen separately and come in different lengths
handlebar rod 4"	Attaches to the handlebar clamp and extends a 4" 15mm rod for attaching hand grips or other accessories.
Handlebar rod 8"	same as above but in 8" length
grip rod 4"	a combination 4" rod with single clamp attachment for 15mm rod. perfect for providing a 4" rod on just one side of the rig.
grip rod 8"	same as above but in 8" length
microMount	A small, highly functional connector that connects any 1/4" male or female accessory (such as an articulating (noga) arm or monitor) to a 15mm rail at a variety of angles. Has a quick release for male or female 1/4" connections
Shoulderpad	the shoulderpad connects to s 15mm rods and provides a stable, padded platform to rest your rig on your shoulder. Typically used with handlebar, grips, and longer 15mm rods. a microPod with microWeights makes an excellent addition to this type of rig for counterbalance.
microHandGrip	Comfortable, rubberized handgrip that attaches to any 15mm rod,such as the handlebar rod or grip rod.
4" 15mm carbon fiber rod	precision-crafted standard 15mmcarbon fiber support rod, 4" in length
6" 15mm carbon fiber rod	same as above, but 6" in length
9" 15mm carbon fiber rod	same as above, but 9" in length
12' 15mm carbon fiber rod	same as above, but 12" in length
microPod	A multi-function cheeseplate (a plate with multiple 1/4" and 3/8" connection holes) with a rod clamp that attaches to 2 15mm rods. This is typically used for attaching accessories such as a larger v-mount battery, wireless mic receive, audio recording system, or counterbalance weights.
microBalance counterbalance weights	A solid block of machined metal that attaches to a microPod (see above) to provide weighted counterbalance for rigs that are shoulder-mounted. microWeights can be stacked in any combination, and are securely screwed together.
microShouldermount offset kit	a microLink plus 9" 15mm rod that allows you to offset the shouldermount rails so your camera is aligned directly in front of your face for easy viewfinder use.
microLink	A connector that attaches 3 15mm rods in parallel. Is most often usedin combination with an additional 15mm rod on a shouldermount setup for placing the rig directly in front so you can use the eyepiece of the camera.
microFollowFocus v2	the award-winning microFollowFocus in a standalone package for convenient, accurate control over your lens' focus (lenses require microLensGears)
microLensGears	lens gears that wrap around your existing lenses without modification and without damage to your lenses. Provides the gearing necessary for precise control of focus when combined with the microFollowFocus

Pricing and Availability
